Lab 4-2. Argo workflow and events
- Argo workflow를 이용하여 빌드 파이프라인을 구성합니다.
- Argo event를 통해 Git 웹훅을 받아 파이프라인을 기동합니다.
1) Argo workflow 설치
- Argo Workflow를 설치하고 접속 설정을 적용합니다.
# Install argo-workflow
$ kubectl create namespace argo
$ kubectl apply -f https://github.com/argoproj/argo-workflows/releases/download/v3.4.7/install.yaml
# Patch auth-mode
$ kubectl patch deployment \
argo-server \
--namespace argo \
--type='json' \
-p='[{"op": "replace", "path": "/spec/template/spec/containers/0/args", "value": [
"server",
"--auth-mode=server"
]}]'
$ cat << EOF >> svc-patch.yml
spec:
ports:
- name: web
port: 2746
protocol: TCP
targetPort: 2746
nodePort: 30274
type: NodePort
EOF
$ k patch -n argo svc argo-server --patch-file svc-patch.yml
2) 빌드 파이프라인 준비
- SpringBoot 샘플 어플리케이션을 maven 빌드 후 컨테이너 이미지 저장소에 푸쉬 합니다.
- ArgoCD Gitops 레파지토지와 동기화하여 자동 배포를 적용합니다.
- Gitea와 ArgoCD 인증정보는 argo 네임스페이스에 secret으로 설정하여 적용합니다.
# 이전에 등록한 gitea 계정 / 패스워드 정보와 Argocd 패스워드 정보를 Secret으로 생성합니다.
$ kubectl create secret generic -n argo gitops-secret --from-literal=gitops-repo-secret='http://argo:12345678@gitea.gitea:3000'
# ArgoCD 패스워드는 앞에서 확인한 패스워드를 입력합니다.
$ kubectl create secret generic -n argo argocd-credentials-secret --from-literal=argocd-user-password='7NKSA3w19yQ4XGAL' --from-literal=argocd-user-id='admin'
# 파이프라인용 pvc 생성
$ cat << EOF >> pvc-argo.yml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: pvc-argo-build-workspace
namespace: argo
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: local-path
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: pvc-argo-build-cache
namespace: argo
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: local-path
EOF
$ kubectl apply -f pvc-argo.yml -n argo
3) 파이프라인 워크플로우 (WorkflowTemplate) 등록
- Argo workflow 는 NodePort 서비스를 통해 접속합니다.
- https://노드IP:30274
# WorkflowTemplate Revised
# Argo Workflow UI에 접속하여 Workflow Template 생성 메뉴에서 아래 template를 하나씩 생성합니다.
---
metadata:
name: build-id
namespace: argo
spec:
templates:
- name: build-id
inputs:
parameters:
- name: stage
outputs:
parameters:
- name: build-id
valueFrom:
path: /workspace/result
script:
name: ''
image: bash:5.0.18
command:
- sh
workingDir: /workspace
resources: {}
volumeMounts:
- name: workdir
mountPath: /workspace
source: |
ts=`date "+%y%m%d%H%M%S"`
echo "Current Timestamp: ${ts}"
id=`echo $RANDOM | md5sum | head -c 6`
buildId=-${ts}-${id}
echo ${buildId} | tr -d "\n" | tee /workspace/result
serviceAccountName: argo-pipeline-runner
---
metadata:
name: git-clone
namespace: argo
spec:
templates:
- name: git-clone
inputs:
parameters:
- name: git-url
- name: revision
script:
image: alpine/git:v2.26.2
command:
- sh
workingDir: /workspace
volumeMounts:
- name: workdir
mountPath: /workspace
source: |
rm -rf *
rm -rf .git
rm -rf .mvn
git init
git remote add origin
git fetch --depth 1 origin
BRANCH=$(echo | cut -d/ -f3)
git checkout $BRANCH
serviceAccountName: argo-pipeline-runner
---
metadata:
name: build-mvn
namespace: argo
spec:
templates:
- name: build-mvn
inputs:
parameters:
- name: image-url
- name: image-tag
container:
image: maven:3-jdk-11
command:
- mvn
args:
- '-B'
- '-Duser.home=/workspace'
- '-DsendCredentialsOverHttp=true'
- '-Djib.allowInsecureRegistries=true'
- >-
-Djib.to.image=:
- compile
- com.google.cloud.tools:jib-maven-plugin:build
workingDir: /workspace
volumeMounts:
- name: workdir
mountPath: /workspace
- name: m2-cache
mountPath: /workspace/.m2
serviceAccountName: argo-pipeline-runner
---
metadata:
name: update-manifest
namespace: argo
spec:
templates:
- name: update-manifest
inputs:
parameters:
- name: gitops-url
- name: gitops-branch
- name: image-tag
script:
image: alpine/git:v2.26.2
command:
- sh
workingDir: /workspace
env:
- name: GITOPS_REPO_CREDENTIALS
valueFrom:
secretKeyRef:
name: gitops-secret
key: gitops-repo-secret
resources: {}
source: |
mkdir deploy && cd deploy
git init
echo $GITOPS_REPO_CREDENTIALS > ~/.git-credentials
cat ~/.git-credentials
git config credential.helper store
git remote add origin
git remote -v
git -c http.sslVerify=false fetch --depth 1 origin
git checkout
echo "updating image to "
sed -i "s|newTag:.*$|newTag: |" dev/kustomization.yaml
cat dev/kustomization.yaml | grep newTag
git config --global user.email "argo@devops"
git config --global user.name "Argo Workflow Pipelines"
git add .
git commit --allow-empty -m "[argo] updating image to "
git -c http.sslVerify=false push origin
serviceAccountName: argo-pipeline-runner
---
metadata:
name: sync-argo-app
namespace: argo
spec:
templates:
- name: sync-argo-app
inputs:
parameters:
- name: argocd-app-name
- name: argocd-url
script:
image: quay.io/argoproj/argocd:v2.7.2
command:
- sh
env:
- name: ARGO_USER_ID
valueFrom:
secretKeyRef:
name: argocd-credentials-secret
key: argocd-user-id
- name: ARGO_USER_PASSWORD
valueFrom:
secretKeyRef:
name: argocd-credentials-secret
key: argocd-user-password
source: >
argocd login --username $ARGO_USER_ID
--password $ARGO_USER_PASSWORD --insecure
argocd app sync --insecure
argocd app wait --sync --health
--operation --insecure
serviceAccountName: argo-pipeline-runner
---
metadata:
name: mvn-build-webhook
generateName: mvn-build-webhook-
namespace: argo
spec:
templates:
- name: mvn-build
inputs:
parameters:
- name: git-url
value: http://gitea.gitea:3000/argo/kw-mvn.git
- name: revision
value: main
- name: image-url
value: 마스터노드IP:30005/kw-mvn
- name: stage
value: dev
- name: gitops-url
value: http://gitea.gitea:3000/argo/kw-mvn-deploy.git
- name: gitops-branch
value: kust
- name: argocd-app-name
value: kw-mvn
- name: argocd-url
value: argocd-server.argocd
outputs: {}
metadata: {}
steps:
- - name: get-build-id
arguments:
parameters:
- name: stage
value: ''
templateRef:
name: build-id
template: build-id
- - name: clone-sources
arguments:
parameters:
- name: git-url
value: ''
- name: revision
value: ''
templateRef:
name: git-clone
template: git-clone
- - name: build-push
arguments:
parameters:
- name: image-url
value: ''
- name: image-tag
value: ''
templateRef:
name: build-mvn
template: build-mvn
- - name: argo-update
arguments:
parameters:
- name: gitops-url
value: ''
- name: gitops-branch
value: ''
- name: image-tag
value: ''
templateRef:
name: update-manifest
template: update-manifest
- - name: argo-sync
arguments:
parameters:
- name: argocd-app-name
value: ''
- name: argocd-url
value: ''
templateRef:
name: sync-argo-app
template: sync-argo-app
entrypoint: mvn-build
arguments:
parameters:
- name: repository-name
value: kw-mvn
serviceAccountName: argo-pipeline-runner
volumes:
- name: workdir
persistentVolumeClaim:
claimName: pvc-argo-build-workspace
- name: m2-cache
persistentVolumeClaim:
claimName: pvc-argo-build-cache
---
- Argo Pipeline 실행을 위한 ServiceAccount와 권한을 설정합니다.
$ cat << EOF >> argo-rbac.yml
apiVersion: v1
kind: ServiceAccount
metadata:
name: argo-pipeline-runner
namespace: argo
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: argo-pipeline-runner
rules:
- apiGroups:
- argoproj.io
verbs:
- "*"
resources:
- workflows
- clusterworkflowtemplates
- workflowtemplates
- apiGroups:
- ''
resources:
- 'pods'
verbs:
- 'create'
- 'delete'
- 'get'
- 'list'
- 'patch'
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: argo-pipeline-runner
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: argo-pipeline-runner
subjects:
- kind: ServiceAccount
name: argo-pipeline-runner
namespace: argo
EOF
$ kubectl apply -f argo-rbac.yml -n argo
- Workflow Template을 Submit 하여 빌드 프로세스를 구동합니다.
- https://마스터노드IP:30274/workflow-templates/argo/mvn-build-webhook
-
Submit > Entropint : mvn-build > image-url : 자신의 레지스트리 주소로 변경 >Submit
- Workflow 구동 결과와 ArgoCD의 동기화 결과, Rancher의 파드 구동 현황을 확인하고
- endpoint URL에 접속합니다 (http://마스터노드IP:30099/)
4) Argo Events 설치
# 네임스페이스, Argo Event
$ helm repo add argo https://argoproj.github.io/argo-helm
$ helm install argo-events argo/argo-events -n argo
$ kubectl apply -f https://raw.githubusercontent.com/argoproj/argo-events/stable/examples/eventbus/native.yaml -n argo
5) Trigger 설정
# 소스 레파지토리에서 main 브랜치 푸쉬시 웹훅을 통해 파이프라인이 기동되도록 설정합니다.
$ cat << EOF >> gitea-trigger.yml
---
apiVersion: argoproj.io/v1alpha1
kind: EventSource
metadata:
name: gitea-event-source
spec:
type: "webhook"
service:
ports:
- port: 12000
targetPort: 12000
webhook:
gitea-push:
port: "12000"
endpoint: "/push"
method: "POST"
filter:
expression: "(body.ref == 'refs/heads/main')"
---
apiVersion: argoproj.io/v1alpha1
kind: Sensor
metadata:
name: gitea-push
spec:
dependencies:
- name: build-dep
eventSourceName: gitea-event-source
eventName: gitea-push
triggers:
- template:
name: gitea-push
argoWorkflow:
source:
resource:
apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
generateName: build-trigger-
spec:
arguments:
parameters:
- name: git-url
value: http://gitea.gitea:3000/argo/
- name: revision
value: main
- name: image-url
value: 마스터노드IP:30005/kw-mvn
- name: stage
value: dev
- name: gitops-url
value: http://gitea.gitea:3000/argo/kw-mvn-deploy.git
- name: gitops-branch
value: kust
- name: argocd-app-name
value: kw-mvn
- name: argocd-url
value: argocd-server.argocd
workflowTemplateRef:
name: mvn-build-webhook
operation: submit
parameters:
- src:
dependencyName: build-dep
dataKey: body.repository.name
dest: spec.arguments.parameters.0.value
operation: append
template:
serviceAccountName: argo-pipeline-runner
EOF
$ kubectl apply -f gitea-trigger.yml -n argo

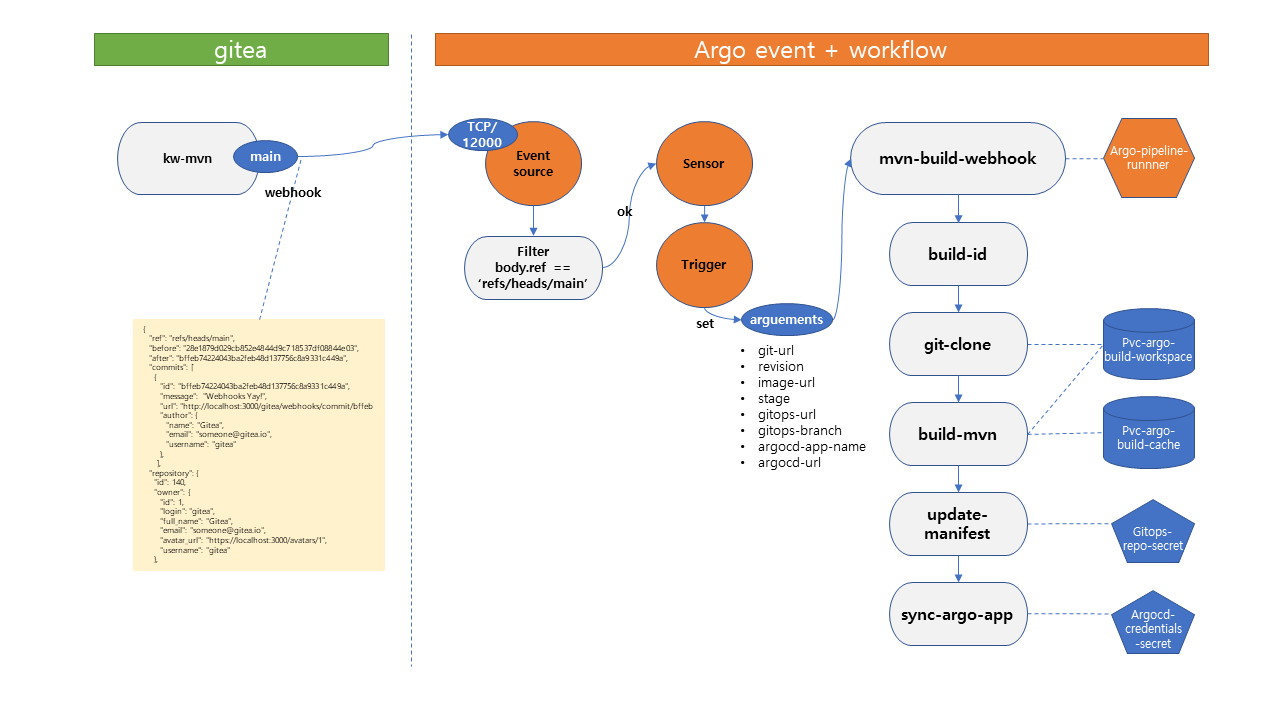

- Gitea의 소스 레파지토리에 웹훅을 등록합니다.
- https://gitea.kw01/argo/kw-mvn/settings/hooks
- Add Webhook > Gitea
- Target URL 설정 : http://gitea-event-source-eventsource-svc.argo:12000/push
- Test Delivery 클릭하여 웹훅 동작을 확인합니다.
- gitea.kw01/argo/kw-mvn의 main 브랜치를 Push하여 파이프라인 기동을 확인합니다.
